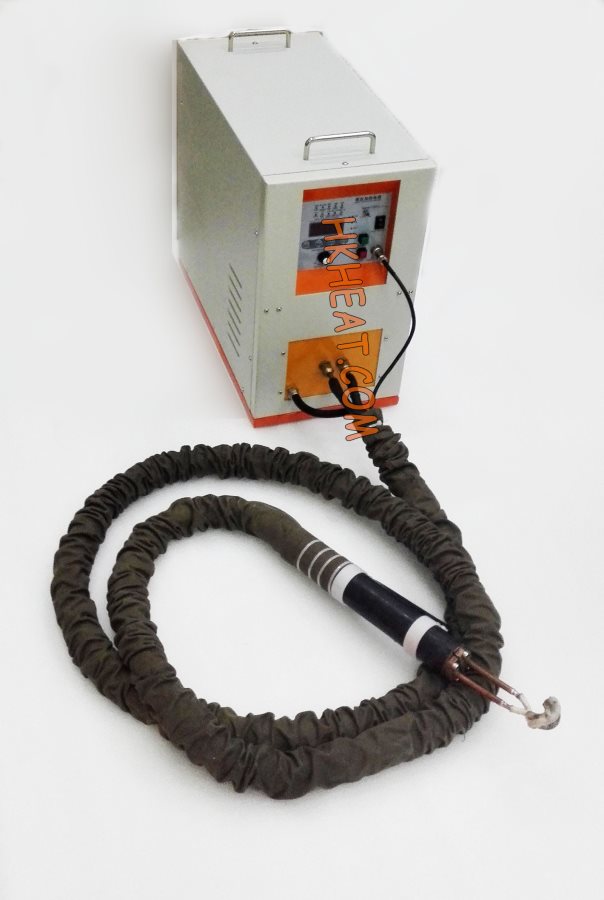

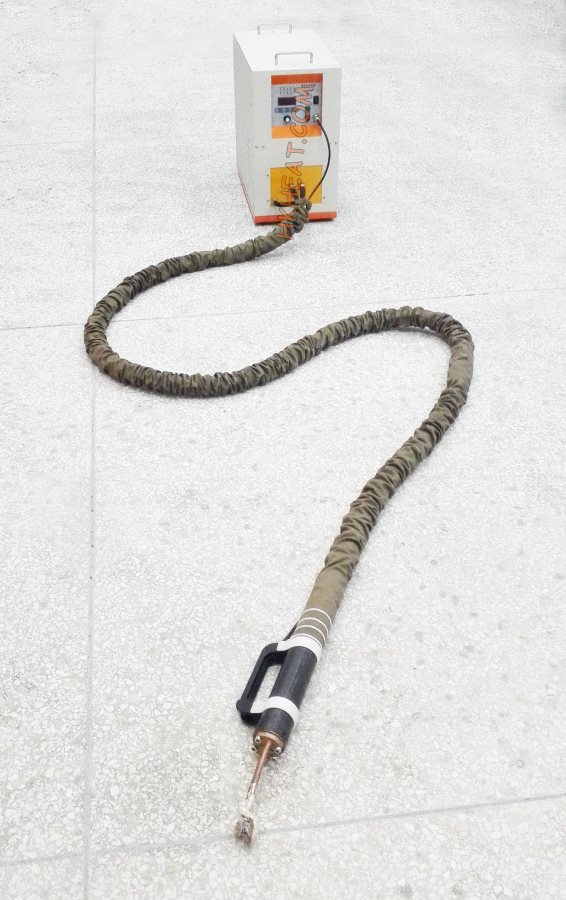

HK-20A-UHF Ultra-high Frequency Induction Heater

2017/08/01 2297

Specification of (UHF) Ultra-High Frequency Induction Heating Machines:

Type	Rated Power	Max. Input Current	Max. Absorbed Power	Max. Frequency	Input Voltage	Cooling Water	Normal Size (cm)	Net Weight(kg)
HK-05AB-UHF	6KVA	23A	5KW	1.5MHz	220VAC, 50Hz, Single Phase	>0.2 MPa, 2-5 L/Min, <40 oC	Main: 43X35X13 Head: 23X10X12	10+6
HK-06A-UHF	6.5KVA	27A	6KW	1.1MHz	220VAC, 50Hz, Single Phase	>0.2 MPa, 5 L/Min, <40 oC	58X26X50	23
HK-06AB-UHF	6.5KVA	27A	6KW	1.1MHz	220VAC, 50Hz, Single Phase	>0.2 MPa, 5 L/Min, <40 oC	Main: 52X24X50 Head: 14X14X10	17+6
HK-10A-UHF	12KVA	15A	10KW	900KHz	380VAC, 50Hz, Three Phase	>0.2 MPa, 5 L/Min, <40 oC	58X26X50	30
HK-10AB-UHF	12KVA	15A	10KW	900KHz	380VAC, 50Hz, Three Phase	>0.2 MPa, 5 L/Min, <40 oC	Main: 52X24X50 Head: 14X14X10	26+6
HK-20A-UHF	23KVA	30A	20KW	600KHz	380VAC, 50Hz, Three Phase	>0.2 MPa, 5 L/Min, <40 oC	Main: 55X35X45	35
HK-20AB-UHF	23KVA	30A	20KW	600KHz	380VAC, 50Hz, Three Phase	>0.2 MPa, 5 L/Min, <40 oC	Main: 55X25X45 Head: 49X26X37	29+24
HK-30AB-UHF	34KVA	45A	30KW	500KHz	380VAC, 50Hz, Three Phase	>0.2 MPa, 5 L/Min, <40 oC	Main: 55X25X45 Head: 49X26X37	32+25
HK-40AB-UHF	45KVA	61A	40KW	400KHz	380VAC, 50Hz, Three Phase	>0.2 MPa, 7.6 L/Min, <40 oC	Main: 65X34X55 Head: 51X30X45	49+28
HK-60AB-UHF	66KVA	90A	60KW	400KHz	380VAC, 50Hz, Three Phase	>0.2 MPa, 10 L/Min, <40 oC	Main: 65X34X55 Head: 51X30X45	52+30
HK-80AB-UHF	80KVA	120A	80KW	400KHz	380VAC, 50Hz, Three Phase	>0.2 MPa, 20 L/Min, <40 oC	customized	customized
HK-100AB-UHF	110KVA	150A	100KW	400KHz	380VAC, 50Hz, Three Phase	>0.2 MPa, 25 L/Min, <40 oC	customized	customized
HK-120AB-UHF	130KVA	180A	120KW	400KHz	380VAC, 50Hz, Three Phase	>0.2 MPa, 30 L/Min, <40 oC	customized	customized
HK-160AB-UHF	180KVA	240A	160KW	400KHz	380VAC, 50Hz, Three Phase	>0.2 MPa, 30 L/Min, <40 oC	customized	customized
HK-200AB-UHF	210KVA	300A	200KW	400KHz	380VAC, 50Hz, Three Phase	>0.2 MPa, 40 L/Min, <40 oC	customized	customized

Application Fields of Induction Heating

Brazing by induction will bring a better brazing effect.
A quick and better way for foring works
A quicker melting method
The best quenching method
A better tempering method

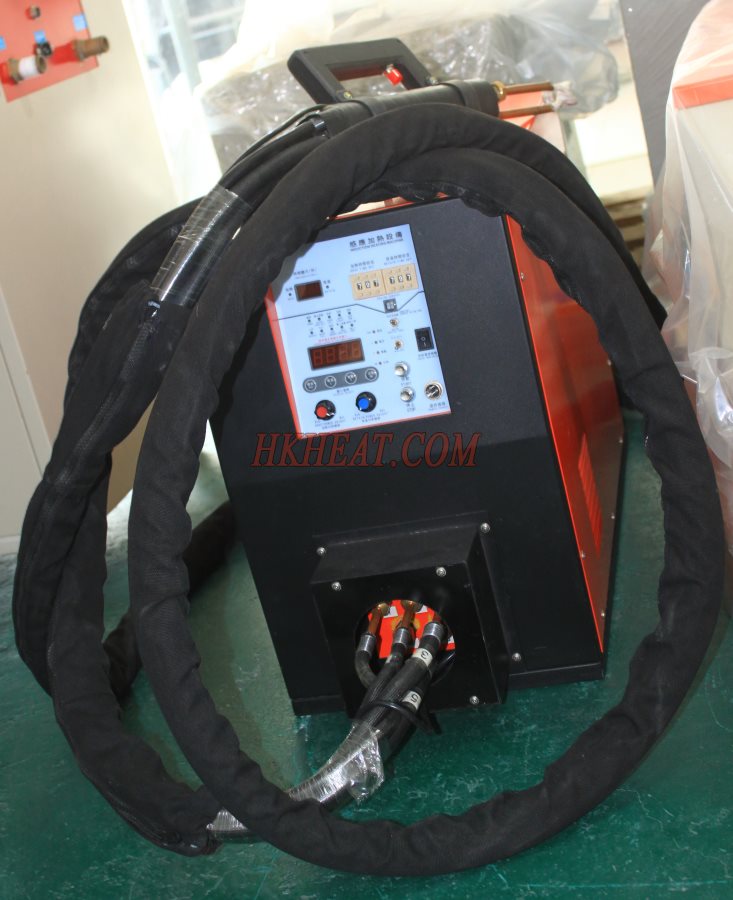

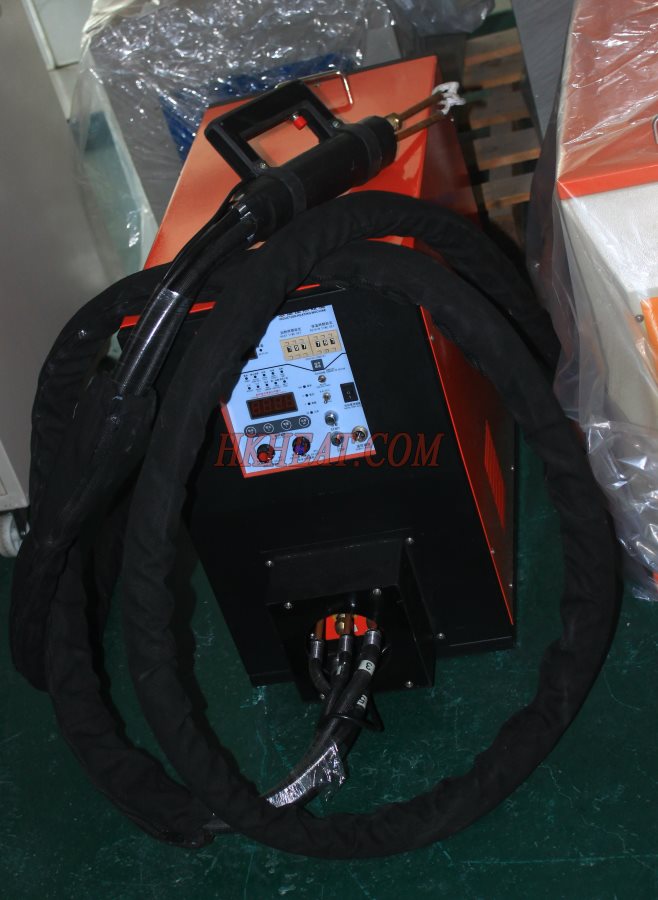

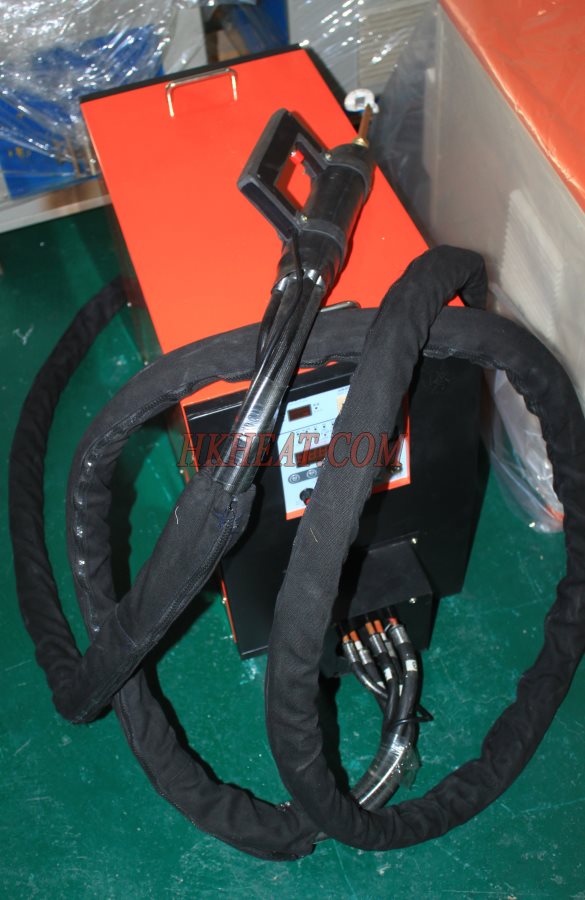

With flexible induction coil, cool
Many solution for induction heating.

Advantage of Induction Heating

Optimized Consistency
Induction heating eliminates the inconsistencies and quality issues associated with open flame, torch heating and other methods.

Maximized Productivity
Induction works so quickly, heat is developed directly and instantly (>1000℃. in < 1 second) inside the part.
Improved Product Quality
With induction, the part to be heated never comes into direct contact with a flame or other heating element, the heat is induced within the part itself by alternating electrical current.

Extended Fixture Life
Induction heating rapidly delivers site-specific heat to very small areas of your part, without heating any surrounding parts, this extends the life of the fixture and mechanical setup.
Environmentally Sound
Induction heating systems do not burn traditional fossil fuels, induction heating is a clean, non-polluting process which will help protect the environment.

Reduced Energy Consumption
This uniquely energy-efficient process converts up to 95% of the energy expended energy into useful heat;
batch furnaces are generally only 45% energy-efficient. And since induction requires no warm-up or cool-down cycle, stand-by heat losses are reduced to a bare minimum.
Induction heating is able to heat different shapes of work-piece by customized induction coils.
Induction heating is a quick, safe, clean, environmentally friendly method for melting works
