HK-DSP120AB-RF DSP Air Cooled Induction Heater-Hongyibo Induction Heater

2017/08/03 2565

Type	Output Power	Input Current	Output Frequency	Input Voltage
HK-DSP20AB-RF / HK-DSP20C-RF	20KVA	43A	30KHz ~ 60KHz	380VAC / 3 Phase
HK-DSP30AB-RF / HK-DSP30C-RF	30KVA	51A	30KHz ~ 60KHz	380VAC / 3 Phase
HK-DSP40AB-RF / HK-DSP40C-RF	40KVA	68A	30KHz ~ 60KHz	380VAC / 3 Phase
HK-DSP60AB-RF / HK-DSP60C-RF	60KVA	101A	30KHz ~ 60KHz	380VAC / 3 Phase
HK-DSP80AB-RF / HK-DSP80C-RF	80KVA	135A	30KHz ~ 60KHz	380VAC / 3 Phase
HK-DSP100AB-RF / HK-DSP100C-RF	100KVA	164A	30KHz ~ 60KHz	380VAC / 3 Phase
HK-DSP120AB-RF / HK-DSP120C-RF	120KVA	203A	30KHz ~ 60KHz	380VAC / 3 Phase
HK-DSP160AB-RF / HK-DSP160C-RF	160KVA	270A	30KHz ~ 60KHz	380VAC / 3 Phase
HK-DSP240AB-RF / HK-DSP240C-RF	240KVA	406A	30KHz ~ 60KHz	380VAC / 3 Phase
HK-DSP320AB-RF / HK-DSP320C-RF	320KVA	540A	30KHz ~ 60KHz	380VAC / 3 Phase

Item	Description	Remark
Output Power	20KW ~ 320KW
Output Frequency	1KHz ~ 20KHz	Medium Frequency
Output Frequency	30KHz ~ 60KHz	High Frequency
Output Power Scope	1~100%
Closed-Loop Control Stability	0.5%
Efficiency	≥95%	including isolation transformer
Power Factor	≥0.90
Over Load Ability	1.1 times of 1 minute
IP level	IP20
Cooling Type	air cooled for main machine and transformer	water cooled or air cooled for induction coil
Environment Temperature	-20℃~40℃	0-100% load
Environment Temperature	40℃~55℃	output power derated
Environment Humidity	≤95%	non condensing
Altitude	≤1500 meter	output power derated when higher than 1500m

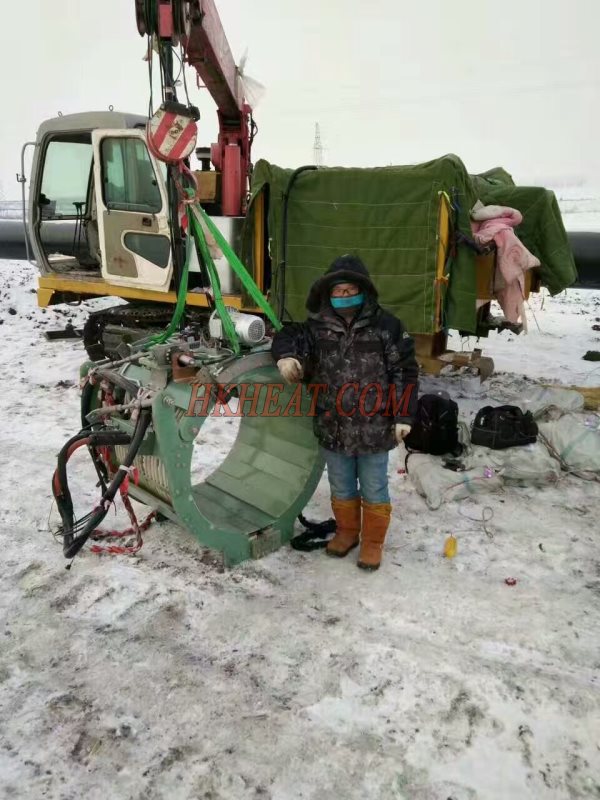

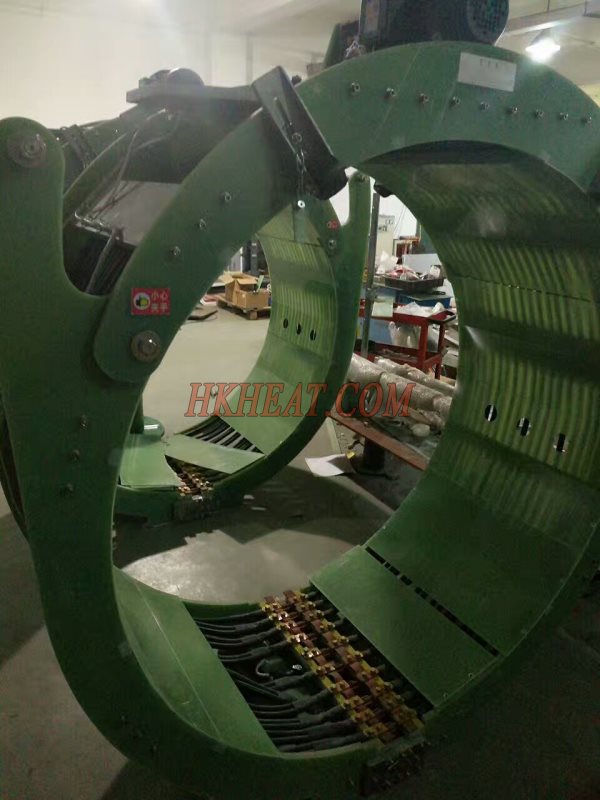

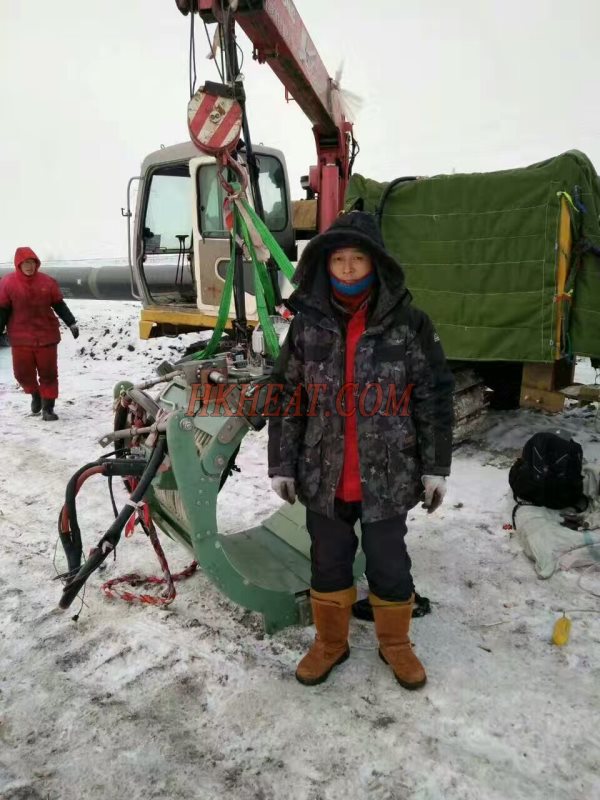

customized full air cooled clamp induction coil for preheating gas pipelines by HK-DSP120C-RF air cooeld induction heater (4)

customized full air cooled clamp induction coil for preheating gas pipelines by HK-DSP120C-RF air cooeld induction heater (3)

customized full air cooled clamp induction coil for preheating gas pipelines by HK-DSP120C-RF air cooeld induction heater (1)

customized full air cooled clamp induction coil for preheating gas pipelines by HK-DSP120C-RF air cooeld induction heater (2)

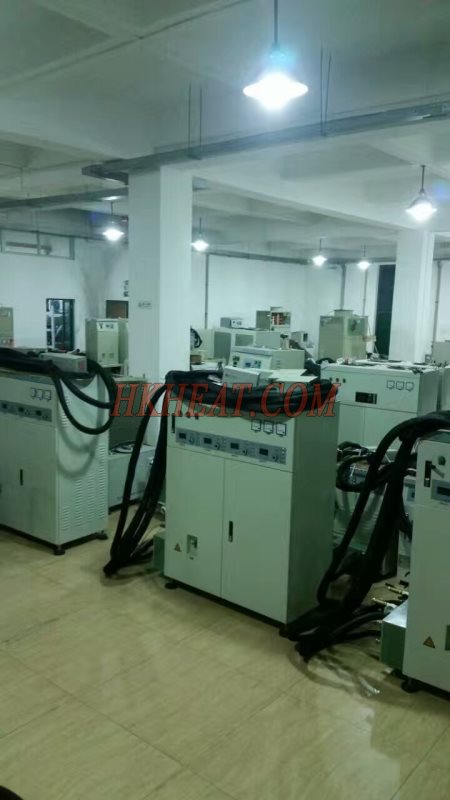

full air cooled HK-DSP120C-RF induction heaters

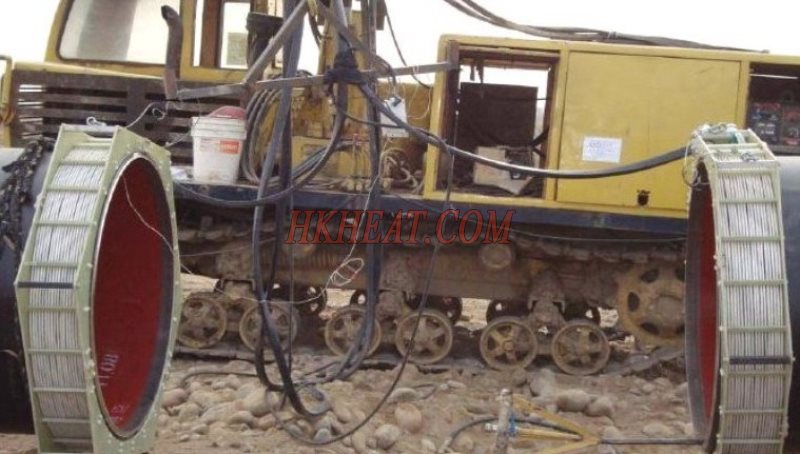

induction preheating D1219mm pipeline for welding by HK-DSP120C-RF air cooled induction heater

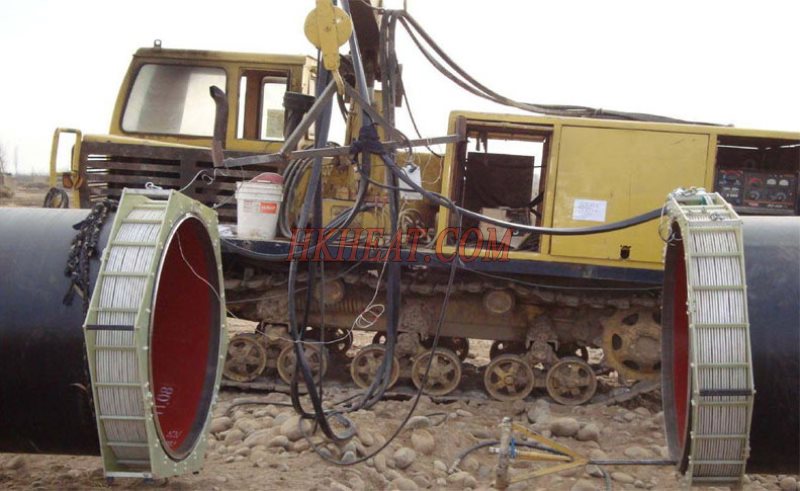

induction preheating steel pipeline by HK-DSP120C-RF air cooled induction heater

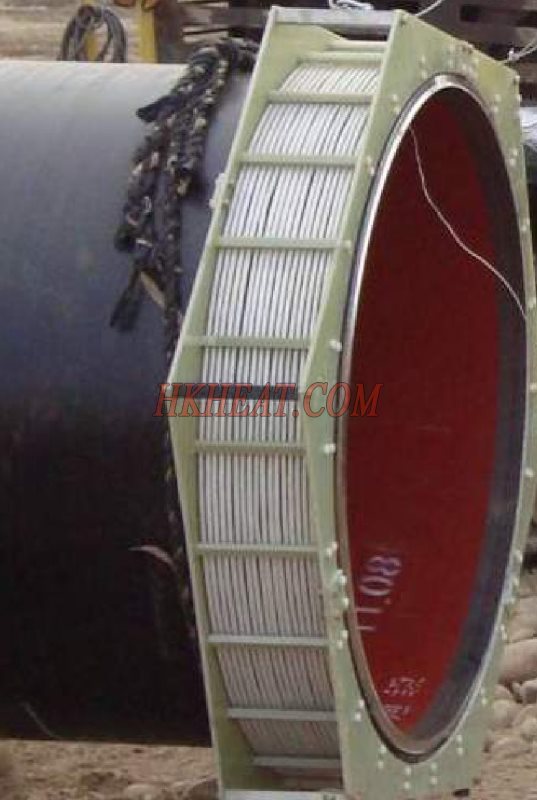

Induction Preheating or Postweld Heating Treatment by HK-DSP120C-RF air cooeld induction heater
